UP Nemadji River Bridge

Deck Girder Bridge over Nemadji River
Allouez, Douglas County, Wisconsin

Click the Photo Above to See All Photos of This Bridge!
Name UP Nemadji River Bridge
Built By Chicago, St. Paul, Minneapolis & Omaha Railway
Contractor Chicago Bridge & Iron Company of Chicago
Currently Owned By Union Pacific Railroad
Length 2,425 Feet Total, 80 Foot Main Span
Width 1 Track
Height Above Ground 60 Feet (Estimated)
Superstructure Type Deck Girder, I-Beam and Wooden Trestle
Substructure Type Stone Masonry, Steel Pile and Timber Pile
Date Built 1916
Traffic Count 2 Trains/Day (Estimated)
Current Status In Use
C&NW Bridge Number 951
Significance Local Significance
Documentation Date February 2014
A brief history of the Chicago, St. Paul, Minneapolis & Omaha Railway Eau Claire-Superior line:


08/20/21


Crossing over the Nemadji River in Allouez, this large bridge consists of a main deck girder span.
Built in 1916 to replace a previous truss span, this structure consists of a single deck girder span, approached by a massive approach to the west.
The east approach consists of 79 spans of I-Beam to cross a flood plain, one of the longest approaches the author has ever seen.
Those spans rest on steel towers. The main deck girder span rests on a stone footing from a previous span, and is approached by trestle spans to the east.
Overall, the bridge remains in good condition. It is a very large example of a common design.

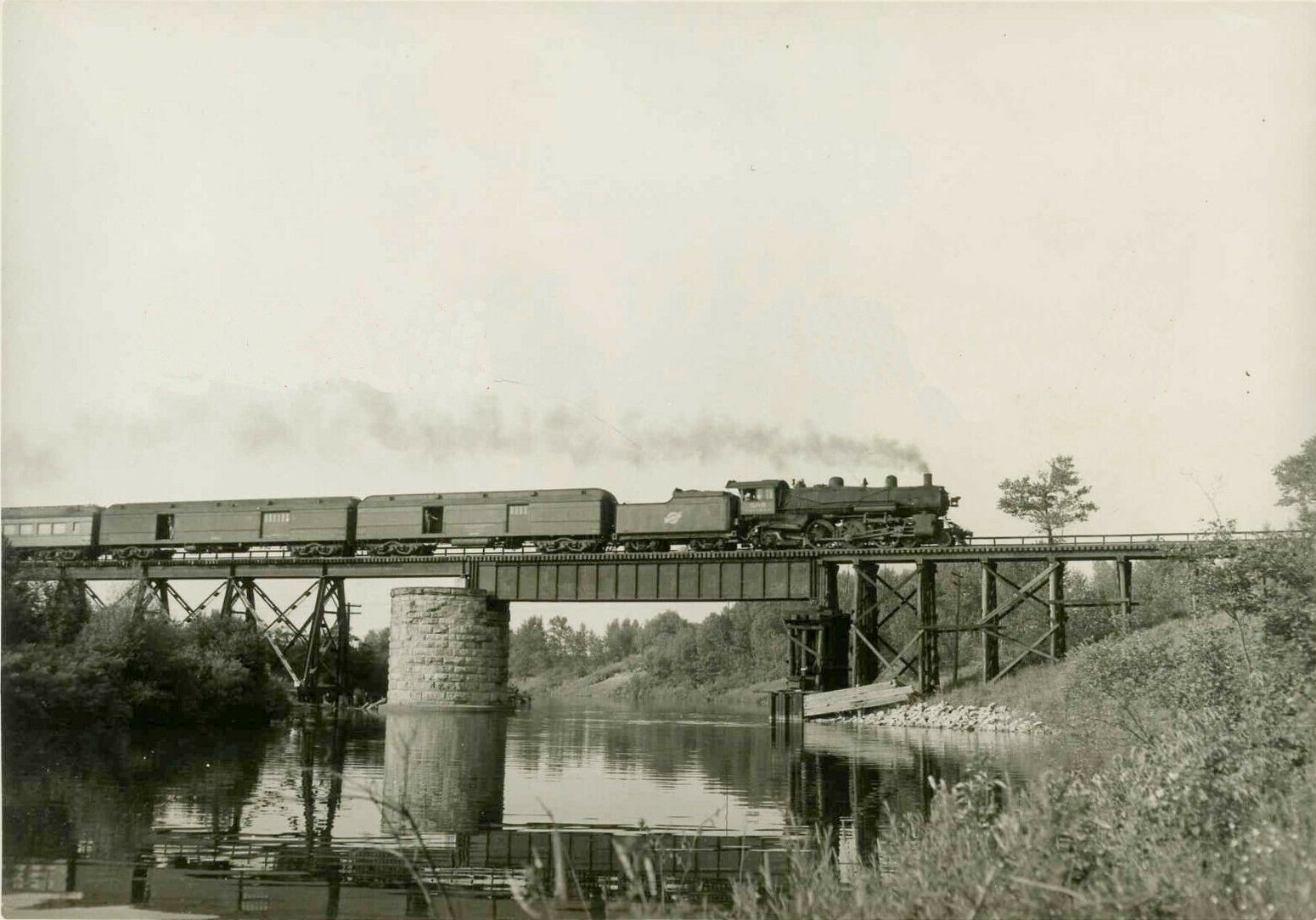

Historic Photo
Historic photo of the bridge

The author has ranked this bridge as being locally significant, due to the common design.
The photo above is an overview.

Nemadji River Railroad Bridges
Upstream CN Nemadji River Bridge (N)
Downstream Osaugie Trail Bridge

Citations

Source Type

Source

Build Date Chicago Bridge & Iron Works plaque
Contractor Chicago Bridge & Iron Works plaque
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
